| Categories | DMR Two Way Radio |
|---|---|
| Model Number: | ST10NPT |
| Place of Origin: | Shenzhen, China |
| Brand Name: | SUNTOR |
| Certification: | FCC, CE, RoHS |
| MOQ: | 1 set |
| Delivery Time: | 7-15 days |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000 set/ month |
| Price: | Negotiation |
| Packaging Details: | Plastic Box |
| Modulation: | TDD-CODFM |
| DC input: | 7-18V DC |
| Working current: | ≤1A at 12V DC |
| Size: | 68×48x15mm |
| Net Weight: | Tx: 68g /Rx: 68g |
| Frequency: | 2.4GHz (2.402-2.478GHz) |
| RF Transmitting Power: | 30dBm |
| Antenna: | 1T1R |
| Company Info. |
| Shenzhen Suntor Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

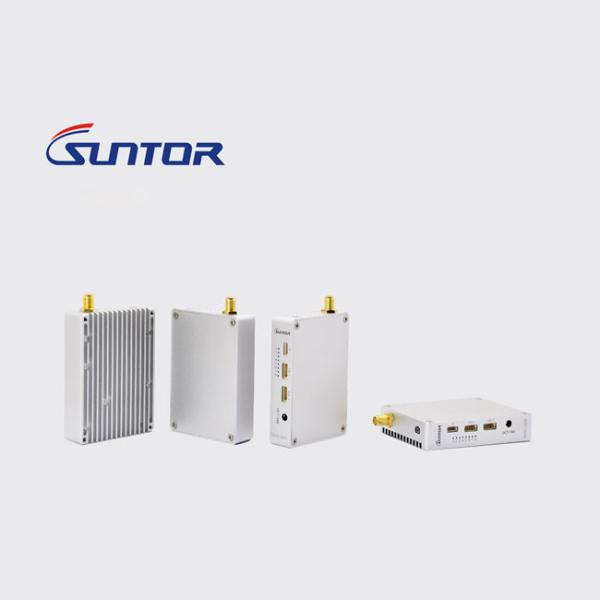

IP Camera 10-14km UAV Transmitter No encoding Video and data transmitting System
Description
ST10NPT is a COFDM wireless communication equipment based on standard. It supports 2.4GHz(2. 402~2. 478 GHz) and suitable for long distance, high code stream and wireless transmitting application. The transmitting rate up to be 70Mbps and the farthest transmission distance is 10km air to ground.
This model has advantages of light weight, mini size, low power consumption, high stability and receiving sensitivity. With RJ45 and TTL bidirectional serial port, this model can wireless transmit video and Ethernet Data.
Features
Modulation: TDD-COFDM
Frequency: 2.4GHz(2.400 - 2.482 GHz)
Air to Ground Distance: 10-14km
Duplex Data: Support SBUS/PPM/TTL
Video Input: RJ45
TX
Dimension: 68×48x15mm
Weight: 68
Support IP Video input, Auto pilot system and UAV nacelle
Double Antenna for transmitting
RX
Dimension: 68×48x15mm
Weight: 68g
Support Ethernet video output, connecting with GS, RC, PC and display
Double Antenna for Receiving
Parameter
| Frequency | 2.4GHz (2.402-2.478GHz) |
| RF Transmitting Power | 30dBm(air to ground 10km) |
| Frequency Bandwidth | 2/4/6/8MHz |
| Antenna | 1T1R |
| Adjustment mode of bit rate | Software adjustment |
| Communication Channel Encryption | WEP, WPA(PSK), WPA2(PSK), WPA+WPA2 (PSK), AES 125/256 |
| Transmission Mode | point to point / point to multipoint |
| Start-up time | < 30s |
| Two-way function | Support video and duplex data simultaneously |
| Data | Support SBUS/PPM/TTL |
| Data Rate | Duplex 3-5Mbps |
| Power | DC 7-18V |
| Power Consumption | TX: 4Watts |
| RX: 4Watts | |
| Temperature | Operating temperature: -40 - +85°C |
| Storage temperature: -55 - +100°C | |
| Interface | Power input interface × 1 |
| Antenna interface × 1 | |
| RS232 Bidirectional Port × 1 | |
| Ethernet to USB / RJ45 on Windows × 2 | |
| Indicator | RJ45 input/output indicator light |
| Transmitting and receiving indicator light | |
| Transmitting and receiving indicator light | |
| Power light | |
| Appearance Design | CNC technology/ double aluminum alloy shell with waterproof design |
| Size | 68×48x15mm |
| Net Weight | Tx: 68g |
| Rx: 68g |
