| Place of Origin: | China |
| Brand Name: | Sunsou |
| Model Number: | GS-2F-120W |
| MOQ: | 100sets |
| Price: | Get Latest Price |
| Packaging Details: | 1pc/1ctn with 1 hander bag |
| Delivery Time: | 7 days after receipt the bank slip |
| Payment Terms: | TT, Western Union, Money Gram |
| Supply Ability: | 150000000 Watt/Watts per Year |
| Size: | 675 x 620 x 70mm |
| Number of Cells: | 36pcs*2 |
| Max. Power: | 120w |
| Material: | Monocrystalline Silicon |
| Module Efficiency: | 16-18% |
| Frame: | 2.0mm Thickness Aluminum Alloy |
| Junction Box: | IP65 waterproof |
| Back Sheet: | High frame resistant & Double-sided fluorine TPT |
| Glass: | 3.2mm high transmission rate and low iron tempered glass |
| EVA: | Black and Blue |
| Color: | Anti-aging & high visosity EVA °ree of crosslinking above 85% |
| Company Info. |
| Sunsou Energy Co.,Ltd |
| View Contact Details |
| Product List |

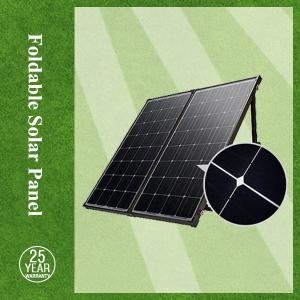

Foldable solar panel 120w, high quality solar panel foldable with controller for cheap price
Detail Information:
1). Professional Manufacturers , experienced staff, full set of advanced production process, every process is strictly controlled and tested to insure quality. Main in Silicon Solar PV Module;solar lighting kits;
2). Cell Grade A;(Bosch cells;Solar world cells);
3). High Efficiency, low iron tempered Anti-reflecting/coating film
3.2mm glass; EVA Cross-linking degree 85%;
Aluminum alloy high thickness frame, production by GS & process and
quality easy controlled. 3 or 6 bypass diodes , 90mm 4m2 cable ,
MC4 or Anderson connectors & waterproof junction box, MPPT
controller.
4). Manufacturing Quality Warranty 10Years , Performance Warranty 10Years 90% Power output .25Years 80% Power output .
Remark: We can provide Malaysia /Taiwan /Thailand Form A to avoid European customs duty.


Specification List:
| Polycrystalline silicon 2 foldable solar moduels | |||||||
| Module type : | Rated Pmpp [W] | Maximum power voltage(V) | Maximum power current(A) | Open circuit voltage(V) | Short circuit current(A) | Dimensions when folded : | weight( kg ) |
| GS-2F-160W | 160 | 18 | 8.89 | 22.5 | 9.48 | 675 x 780 x 70 | 20.8kg |
| GS-2F-140W | 140 | 16 | 8.75 | 20 | 9.33 | 675 x 700 x 70 | 18.2kg |
| GS-2F-120W | 120 | 14 | 8.57 | 17.5 | 9.14 | 675 x 620 x 70 | 15.6kg |
| GS-2F-100W | 100 | 18 | 5.56 | 22.5 | 5.93 | 675 x 540 x 70 | 13.0kg |
| GS-2F-80W | 80 | 20 | 4 | 23.5 | 4.54 | 675 x 460 x 70 | 10.4kg |
| Monocrystalline silicon 2 foldable solar modules | |||||||
| Module type : | Rated Pmpp [W] | Maximum power voltage(V) | Maximum power current(A) | Open circuit voltage(V) | Short circuit current(A) | Dimensions when folded : | weight( kg ) |
| GS-2F-160W | 160 | 18 | 8.89 | 22.5 | 9.48 | 675 x 780 x 70 | 20.8kg |
| GS-2F-140W | 140 | 16 | 8.75 | 20 | 9.33 | 675 x 700 x 70 | 18.2kg |
| GS-2F-120W | 120 | 14 | 8.57 | 17.5 | 9.14 | 675 x 620 x 70 | 15.6kg |
| GS-2F-100W | 100 | 18 | 5.56 | 22.5 | 5.93 | 675 x 540 x 70 | 13.0kg |
| GS-2F-80W | 80 | 20 | 4 | 23.5 | 4.54 | 675 x 460 x 70 | 10.4kg |
Photo Show:


Shipping & Payment:
1. Payment term: T/T in advance (W/U for sample order)
2. Lead time: It depends on your quantity. Usually we will send
sample within 5-7 working days.
3. Shipping will be made via EMS, DHL, Fedex, UPS etc.


                             |
