Pneumatically Driven And Electromagnetic Valve Control PCB Router

Pneumatically Driven And Electromagnetic Valve Control PCB Router

Discription :

Ideal for thick PCBs
Can be used with aluminum, FR4, CEM3 and other substrates
Keeping pace with mid-to-large volume production
Panelized flexible or ultra-thin PCBs
Densely populated PCBs with components located too close to the score line for standard depanelers to handle
Aluminum and metalized substrates (in addition to FR4 , CEM3 , etc.)

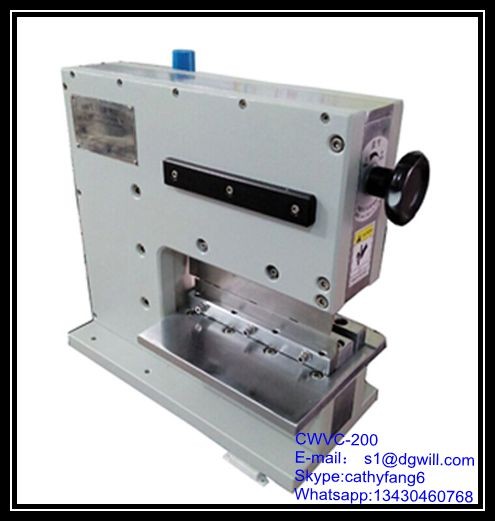

PCBs are separated by the CWVC-200 dual wedge-shaped knives in one gentle rocking motion that shears the panel along the score line, without stress or damage to the PCBs or components. Even when metalized circuit boards are processed – such as those populated with heat-generating LEDs that require heat-dissipating metal inner layers – this machine will easily make the cut .

CWVC-200 also cuts flexible and ultra-thin PCBs ( down to 0.5 mm thick ) clean , with no ripping or tearing , even when sensitive components such as delicate ceramic capacitors , are mounted within 0.5 mm of the score line . The linear , rather than circular , cutting surfaces allow for faster separations without added stress .

Alignment between the CWVC-200 'S linear cutting blades and the panel's score line is achieved using a knob at the top of the machine . The narrow separation between the upper and lower blades ( a maximum of 4 mm) protects the operator from the blade edges

CWVC-200 PCB Depaneler Features :

Separates boards up to 2.0 mm thick ( with minimum 0.5 mm scoring depth )
Can be used with aluminum , FR4 , CEM3 and other substrates , including substrates with metal inner layers
Separates PCBs with components located up to 0.5 mm from the score line
Safe for use with flexible and thin PCBs
Smooth , quiet pneumatic-powered unit with foot-pedal activation
Wedge-shaped linear blades contour to v-groove score lines and operate in a rocking motion
Boards are separated without bending or breaking
No safety risks to operator since there is never a gap greater than 4 mm between the upper and lower blades
Adjust blades to PCB score line using rotary knob

Specifications :
